Handlebars

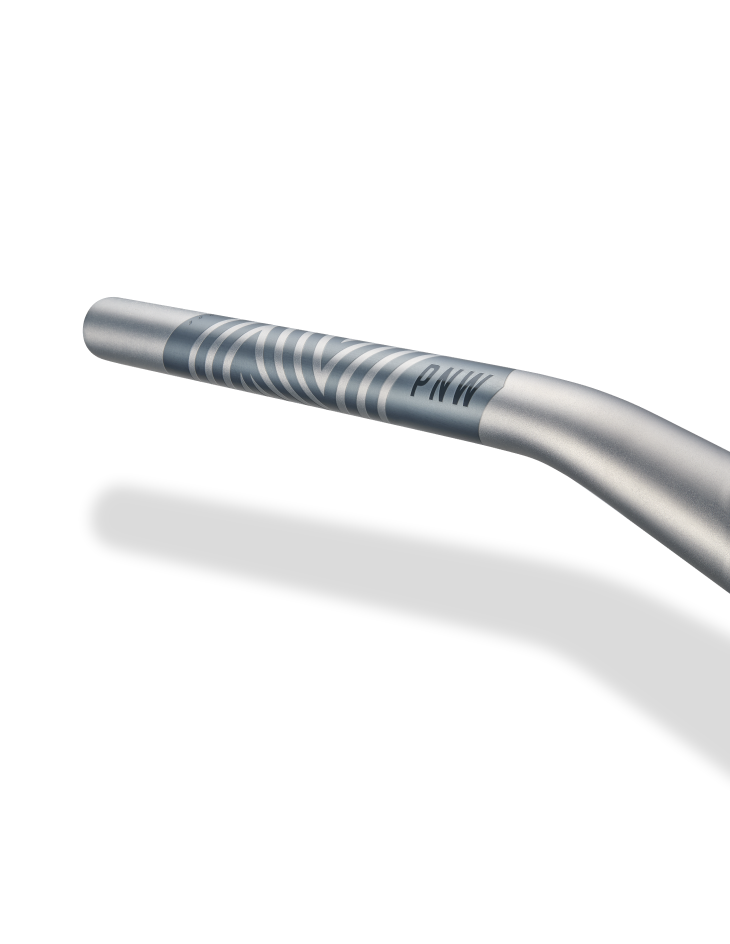

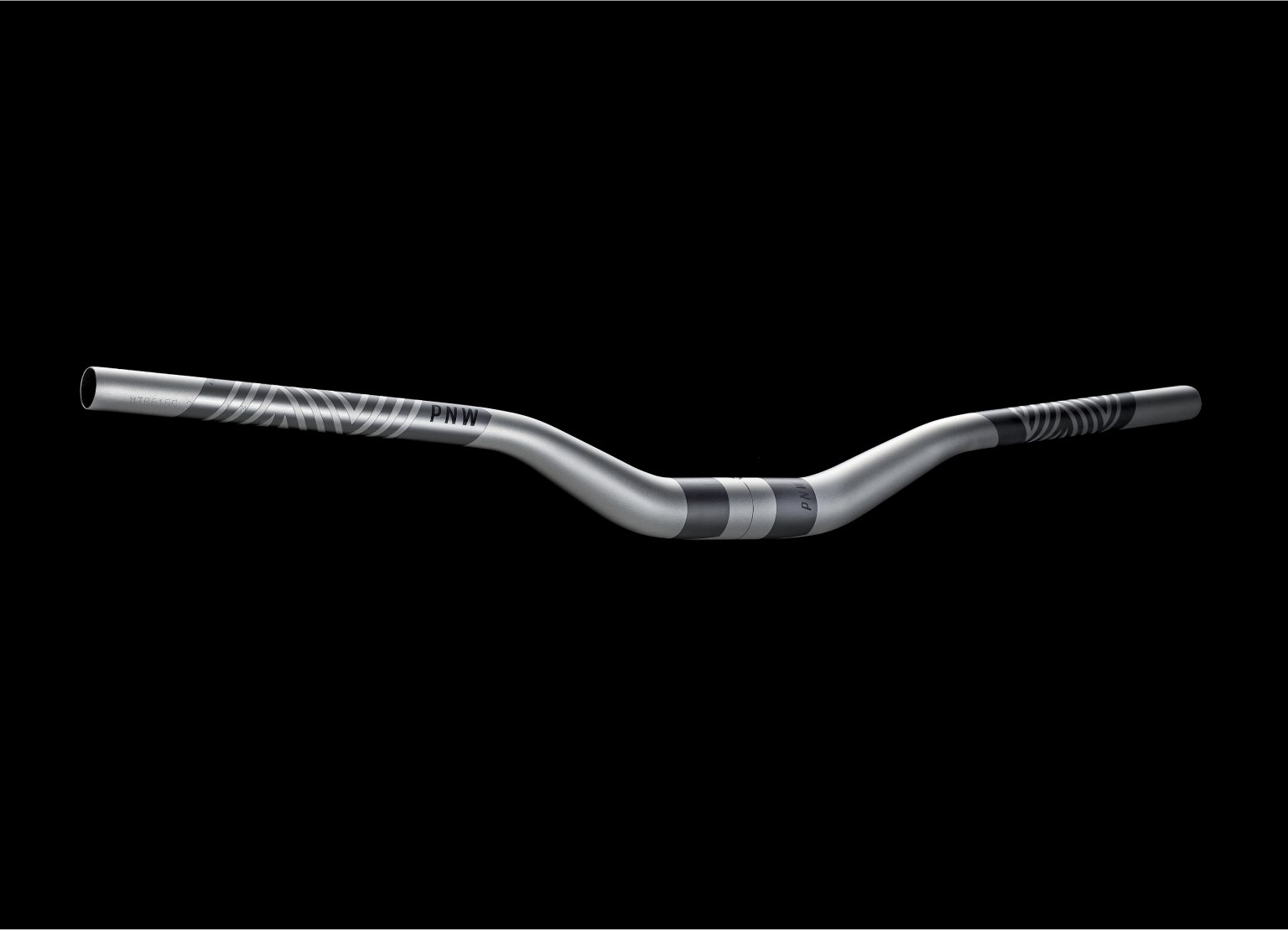

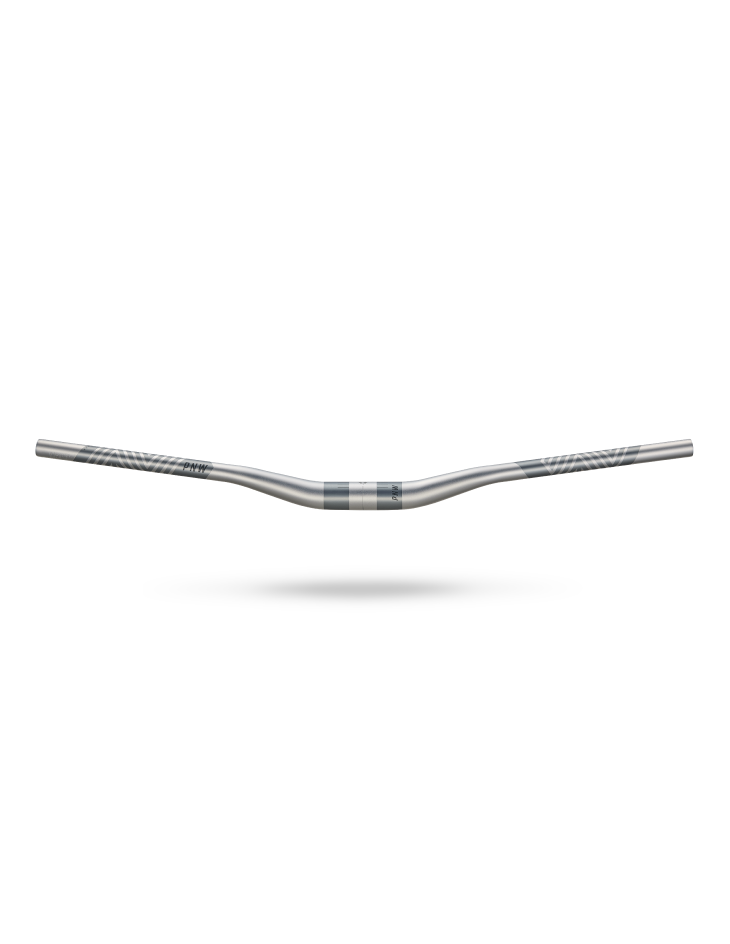

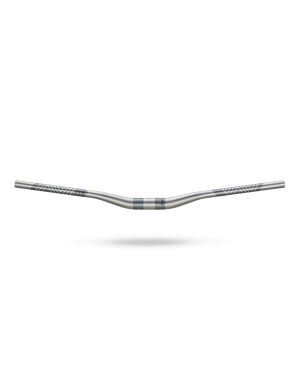

LTD Range Handlebar Gen 4

$ 75.00 Save $ -75.00
/

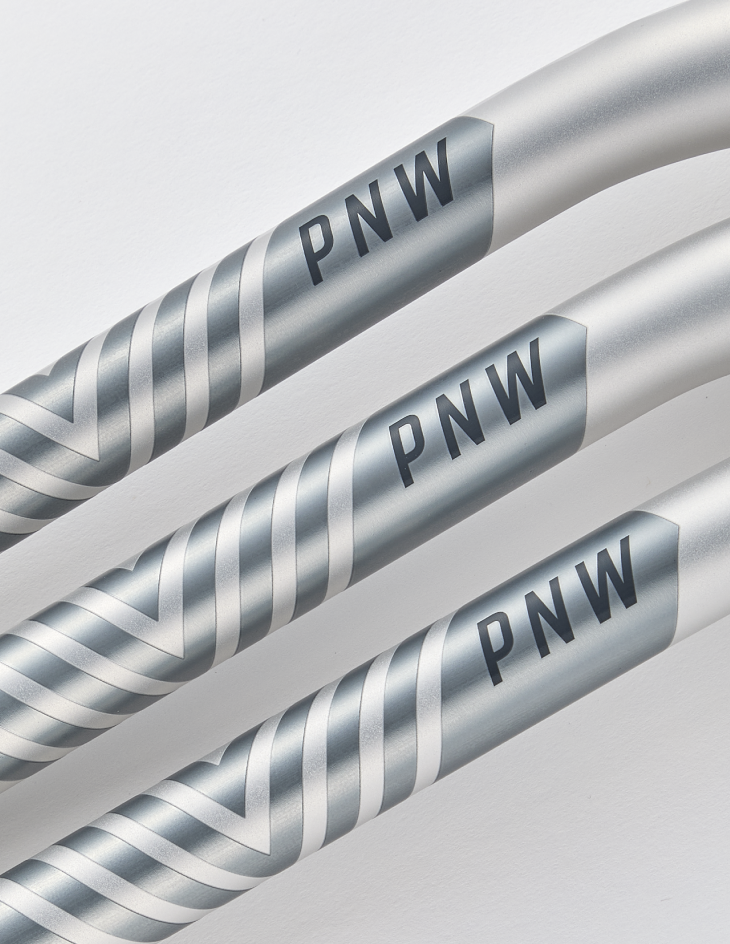

The LTD Range Handlebar Gen 4 features a scratch-averse anodized and sandblasted finish, with an extra brilliant pop of silver foil decals. Designed to keep you comfy on long climbs and ripping descents. Built with ergonomics and comfort at the forefront, our anti-fatigue geometry maximizes fun and minimizes back and wrist discomfort.

  • Lightweight 2014 Aluminum Alloy
  • 70mm Stem Clamp Width

Get your gear for your weekend ride. We offer free expedited shipping to the Contiguous U.S on orders of $100 or more.

Do we ship internationally? Yes, we do! Check out our international shipping page here.

We've always got your back. If anything goes wrong, we're here to do everything we can to ensure you're taken care of. All PNW products come with a lifetime warranty.

View Manual


FEATURES

  • SEND IT

    2014 aluminum alloy closely resembles carbon's chatter absorbing qualities in a more cost-conscious and durable package.

  • SWEEP SPOT

    The ergonomic combo of a 10-degree backsweep and 5-degree upsweep puts your wrists in a more natural and relaxed position.

  • DIFFERENT STOKES

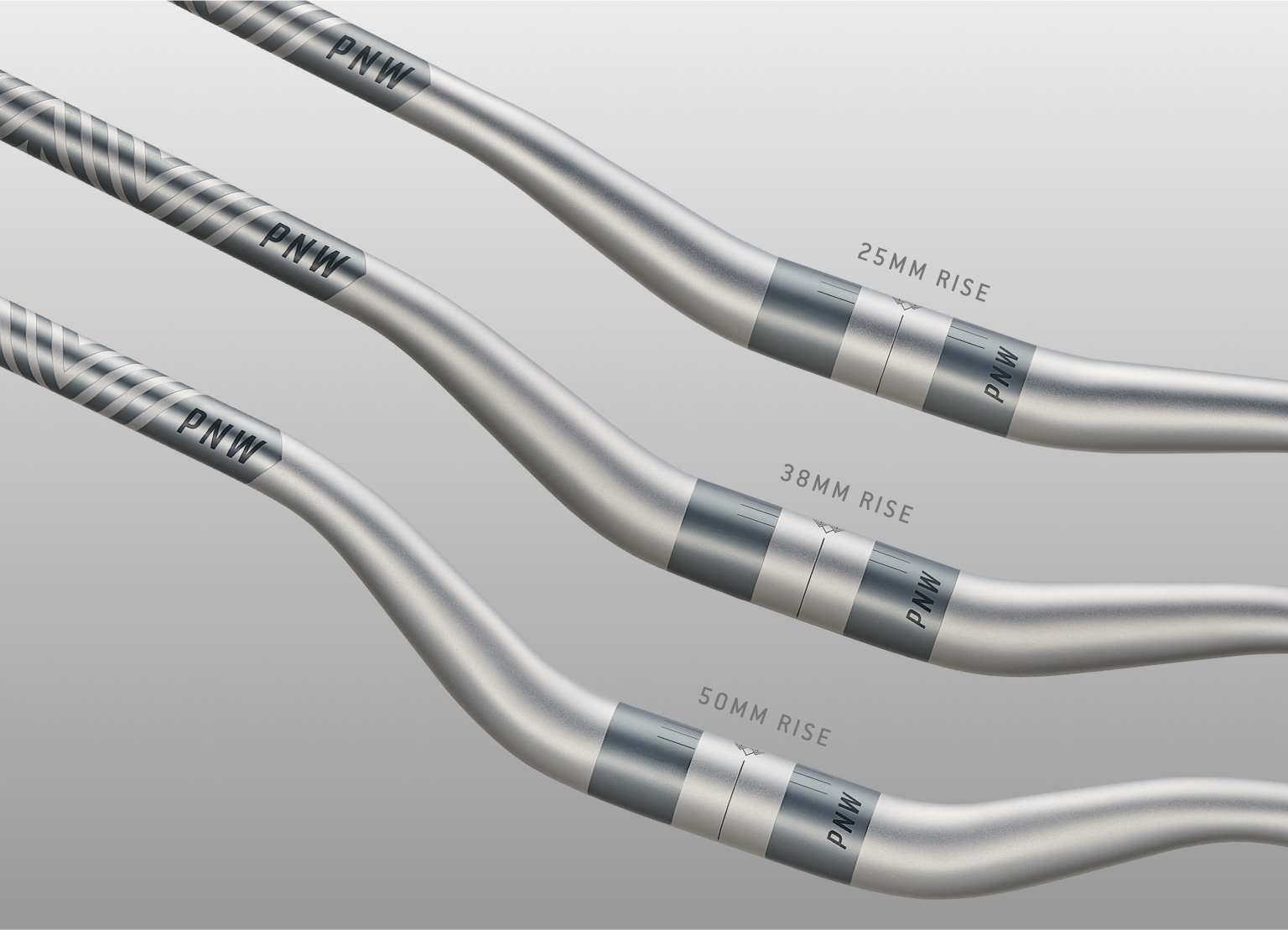

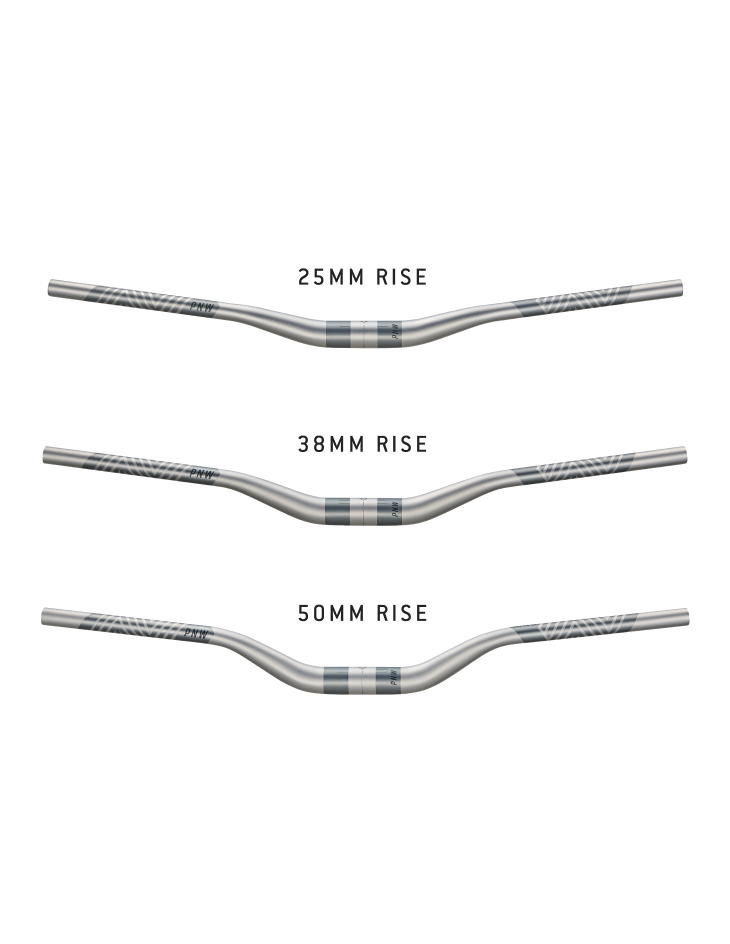

    Available in 25mm, 38mm, and 50mm rise options there’s a Range Bar for every level of stoke, high rise to short stack, we got you.

SEND IT

2014 aluminum alloy closely resembles carbon's chatter absorbing qualities in a more cost-conscious and durable package.

SWEEP SPOT

The ergonomic combo of a 10-degree backsweep and 5-degree upsweep puts your wrists in a more natural and relaxed position.

DIFFERENT STOKES

Available in 25mm, 38mm, and 50mm rise options there’s a Range Bar for every level of stoke, high rise to short stack, we got you.

QUESTIONS?

Sizes - Weights:

  • 31.8x25mm - 316g
  • 31.8x 38mm - 313g
  • 31.8x50mm 323g
  • 35x25mm - 314g
  • 35x38mm - 318g
  • 35x50mm 324g

Width: 800mm

Clamp Width: 70mm

Backsweep: 10 degrees

Upsweep: 5 degrees

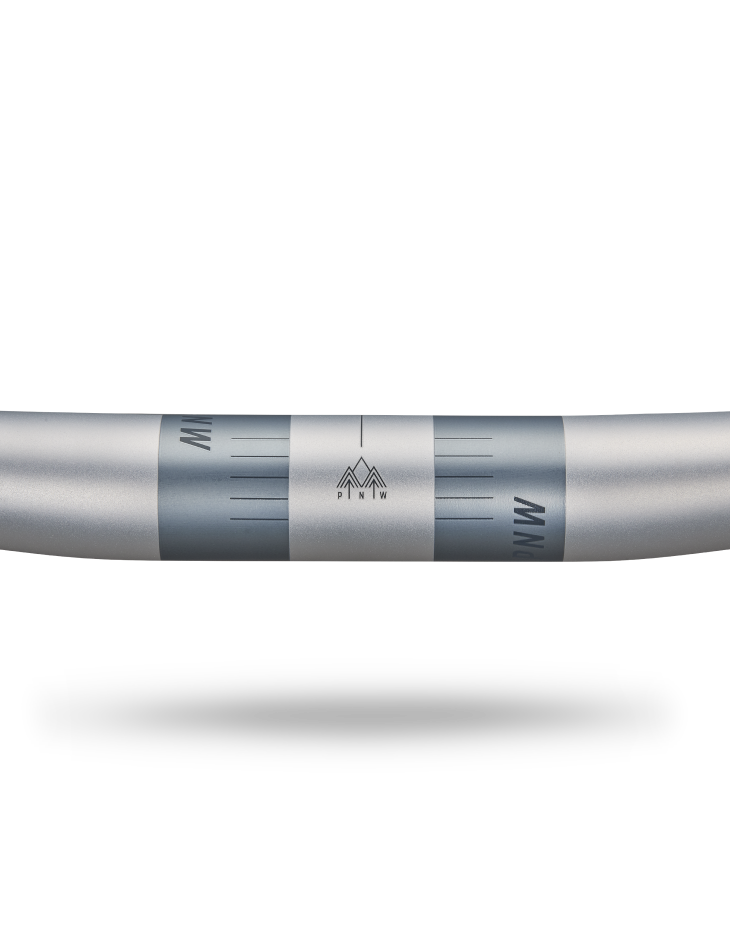

Yep! You can trim the Range bar down if you prefer a narrower bar width, we have a guide on the bars for measurement ease. The minimum width the Range Handlebar can be trimmed to is 740mm.

What happens if I cut them past the minimum cut width?

  1. Your friends will make fun of you.
  2. The clamping area for your controls (brakes/shifters/etc) may become too narrow to fit all your doodads.
  3. Cutting past the minimum cut marks can compromise the bars' structural integrity.
  4. You will lose stability and leverage if your bars are too narrow, making riding way less fun.
  5. The engineered ride quality of the bars will be compromised. Our bar is engineered to have more vertical deflection than horizontal, but if the bars are cut past the minimum cut mark, this deflection will be compromised.

For flat/mountain bike bars we recommend our Loam Lever, Range Lever, or Puget 2x lever.

Our Range bars are compatible with 31.8mm or 35mm diameter clamp stems depending on what size bar you choose, and will fit perfectly with our Range or Loam stem in either the 31.8mm or 35mm diameter.

Yes.

19.5mm

Yes.

These bars are great for any type of mountain biking - XC, Trail, Enduro, and even DH. They are also a great bar for a commuter bike or flat bar gravel bike.
